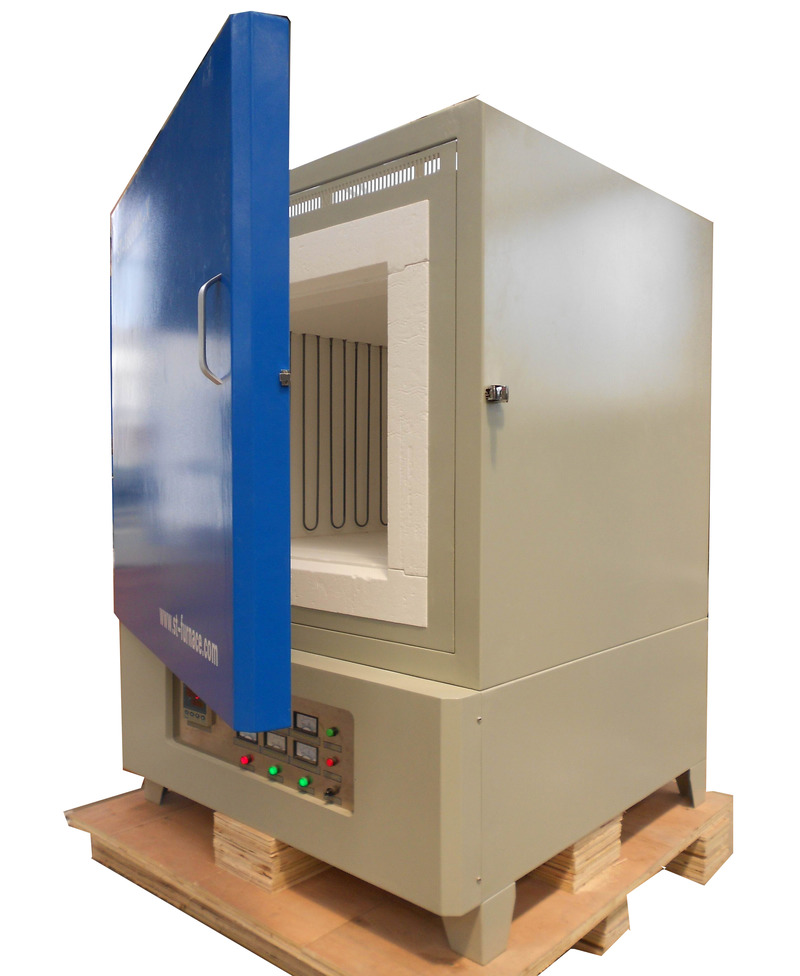

ST-1800MX-10 high temperature laboratory muffle furnace

Product name & model

ST-1800MX-10 Box Electric muffle furnace

Insulation materials

3 layers:lightweight aluminum oxide fiber Ceramic;

Al2O3 hard blanket;

Brick(holding temp and resist compression)

Heat chamber size

600x600x600mm (WxHxD)

Maximum Temperature

1800°C(Working time ≤3h)

Working Temperature

1700°C (continuously Working )

Heating elements

Mo belt(3 independent heating systems)

Temperature uniformity

±5°C (at 1000°C)

Temperature stability

±2°C

Heating rate

0-10°C/min ( adjustable)

Temp controller way

30 segments programmable

and PID auto control(rising temp and cooling tem

Temp measuring

WRe3-WRe25 type thermocouple(3 measuring systems)

Temp display mode

four figure Liquid crystal display

Working power

AC 3-phase, 380 V 50Hz (User Choose any)

Rated power

54 KW

Net weight

960Kg
