Home /Products/Electric Annealing Furnace/1600.C Vacuum crucible muffle Furnace with quartz crucible Dia150mmxH200mm

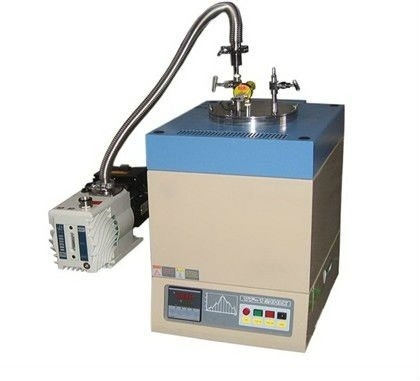

1600.C Vacuum crucible muffle Furnace with quartz crucible Dia150mmxH200mm

1.0 Sets
MOQ
1600.C Vacuum crucible muffle Furnace with quartz crucible Dia150mmxH200mm
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Classification: Laboratory Heating Equipments
Customized Support: OEM, ODM, OBM
Model Number: ST-1600MCV
Inside Chamber Size:: OD150xID130xH200mm
Standard Working Temperature:: 1500.C(continuously)
Max Temperature: 1600.C(<3 Hours)
Temperature Control:: 30 Segments Programmable And PID Auto Control
Heating Element: MoSi2 Heating Elements
Thermocouple: B Type
Heating Rate:: <15.C/ Minutes
Temperature Accuracy: +/- 1.C
Working Voltage:: AC 220V 50HZ
Max. Vacuum:: 0.1MPa
Basic Infomation
Model Number: ST-1600MCV
Payment & Shipping Terms
Packaging Details: Thick plywood wooden box lined with soft foam plastic
Supply Ability: 200 Set/Sets per Month
Product Description

ST-1600VCB 1500.C Vacuum crucible muffle Furnace with quartz crucible Dia150mmxH200mm

1.Working Temp:15300.C;Max. Temp:1600.C

2.Inside chamber Size:O.D.150xI.D.130xH200mm

3.Heated by MoSi2 heating elements

Main Specifications

Inside chamber Size:

O.D.150xI.D.130xH200mm

Max. Working Temperature

1600.C

Standard working temperature

1500.C

Temperature Control:

30 segments programmable and PID auto control

Heating rate:

0~15 .C / min

Temperature accuracy:

+/-1.C

Heating Element:

MoSi2 heating elements

Thermocouple:

B type

Working Voltage:

AC 220V 50HZ

Max. Vacuum

0.1Pa

Furnace structure:

double shell with fan cooling

Furnace chamber:

ceramic fiber

Max. Power

6KW

Standard package included with the furnace:

Part description

Quantity

Thermal couple

1 pc

Stainless steel hook

1 pc

Thermal gloves

1 pair

Operation manual

1 pc

Advantages:

1.Professional manufacturer of the laboratory furnace

2.High quality with lower price

3.Prompt delivery

4.Perfect after-sales service

5.OEM,ODM,DUE TO ORDER services are aviliable.

Applications:

1.Crystallize;

2.Sintering or Roasting or Forging or calcining;

3.Ashing;

4.Heat treating or Preheating;

5.Quench or Hardening or Austemper

6.Annealing or Tempering or Normalizing

7.melting or smelting

8.Synthesis and degradation or pyrolysis or decomposing
