High Efficiency Automatic Chain Tilting Silver Melting Furnace Large Capacity Induction Furnace

1.0 set
MOQ
High Efficiency Automatic Chain Tilting Silver Melting Furnace Large Capacity Induction Furnace
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Type: Induction Furnace
Usage: Melting Furnace
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2022
Warranty Of Core Components: 2 Years
Core Components: PLC
Voltage: 380V
Weight (T): 0.2 T
Power (kW): 25-70
Warranty: 2 Years
Key Selling Points: Accurate Temperature Control
Applicable Industries: Other
Showroom Location: None
Application: Melting Metal
Melting Material: Gold, Silver, Copper
Capacity: 1-100KG
Feature: High Efficiency
Max Temperature: 1800 Degree
Melting Time: 8-30 Mins
Final Product: Ingot
Working Theory: Electromagnetic Induction Melting Smelting
Certification: ISO9001
After Sale Service: Online Support
Basic Infomation
Certification: ISO9001
Payment & Shipping Terms
Packaging Details: Standard export package
Supply Ability: 1000 Set/Sets per Month
Product Description
Product Description

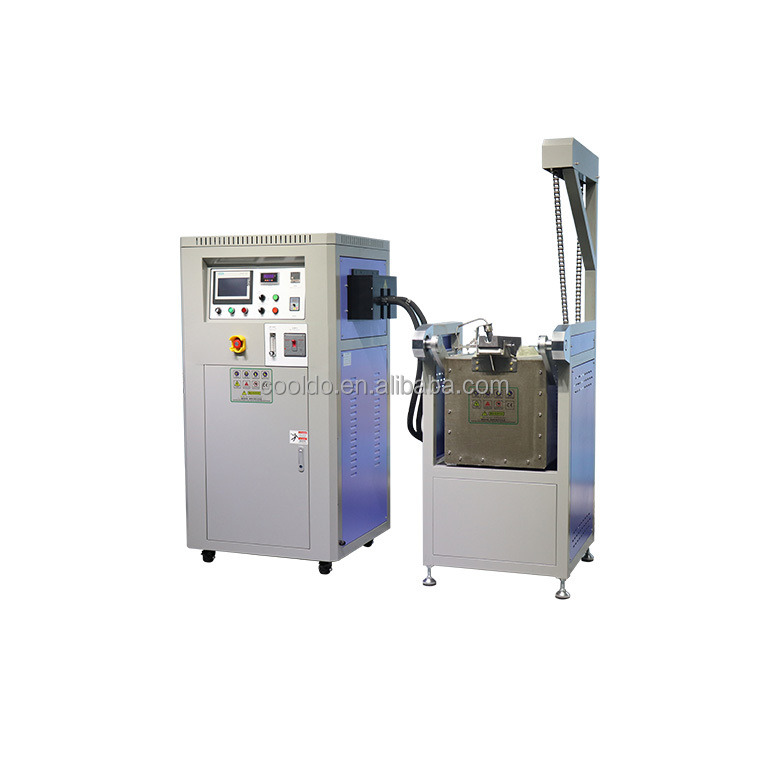

CDOCAST Chain Tilting Silver Melting Furnace
This motor chain tilting silver melting furnace is specially designed for melting 1kg-100kg of silver, but can also be applied for melting large quantities of gold and copper.
The silver melting furnaces are designed with an automatic tilting mechanism, with a motor-driven chain to rotate the furnace which can ensure the tilting operation safe and stable , meanwhile the tilting speed is adjustable comes with the 180 degree rotation of the furnace.
The unique chain drive design allows the pouring point to be fixed at a single point, which is very helpful for spot pouring.
Pouring accuracy is greatly improved, thus guaranteeing the quality of the work piece.
Graphite crucible is adopted in this automatic tilting metal melting furnace, change the crucible is easy job due to our design,it takes only 10 mins to finish the whole process of change crucible. which is ideal choice for some new factory
Details Images
Specification
Model number
CDO-CT25
CDO-CT35
CDO-CT45
CDO-CT100
Applicable metal
Gold, silver, copper
Voltage
3P, 380V, 50/60Hz
Power
25kw
40Kw
50Kw
70Kw
Capacity
Gold:30kg
Silver:20kg
Gold:45kg
Silver:30kg
Gold:75kg
Silver:50kg
Gold:115kg
Silver:100kg
Max temperature
1800℃
1800℃
1800℃
1800℃
Melting time
8-10min
15-18min
20-25min
25-30min
Melting pot material
Pure graphite
75 kg
Silicon carbide
130 kg
Dimension（LWH）
Main frame: 700*900*1200mm Furnace: 1000*800*1800mm
Main frame: 650*600*1000mm Furnace: 650*830*1900mm
Main frame: 650*600*1000mm Furnace: 650*830*1900mm
Main frame: 800*730*1500mm Furnace: 880*1100*2240mm
Feature
1: Graphite crucibles and quartz crucibles are available, thus enabling the melting of almost all non-ferrous and non-ferrous metals, and are particularly suitable for small foundries.
2:This small silver melting machine adopt advanced IGBT induction heating technology, power from 15kw-110Kw available, compared to KGPS induction heating, comes with energy saving effect of 20% .
3: PLC touch screen design is optional design, all the over-current, over-voltage, water shortage security alarm functions and temperature control can be set and display in the PLC, the operation is convenient and intuitive, the overall structure of the machine is aesthetically pleasing due to the reduced number of buttons in the control cabinet.
4: The crucible can be easily replaced without the need to dismantle the furnace to replace a broken crucible, just take it out. The whole process takes only 20 minutes
5: The silver melting furnace is equipped with a mobile trolley for loading the molds, and at the end of the melting process, the worker only needs to push the trolley to the furnace nozzle for pouring, which greatly increases the safety of the operation.
6: Customized graphite moulds are available to support the entire pouring process according to customer requirements.
Application
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Customer Photos
FAQ
1. What is your advantage to compared to others?
① We provided turnkey solution, cost-effective, highly efficient, durable and easy-to operate machine is what we deliver.
② We have strict quality control system, before being dispatched from our factory all of our equipment will undergo a series of strict test, including the appearance quality test, voltage electrical test, aging test also the package strength checking.

2. If our machine meets fault, how could you help us to solve it?
For failures caused by using process, we will send our aftersales engineer to discuss with you, and you should provide the video how the machine is broken,we will find out which part of the machine is broken and then we will send you the broken part By DHL.

3. What is your warranty?
Our warranty period comes from the machine begin to run normally and we will provide the whole life technology support to you for free.
All products sold by COOLDO In warranty period,we will provide you the spare parts for free. Our engineer will help you do the aftersales through our remote control system.When out of one year warranty time, we will provide the spare parts with the cost price for the whole machine lifetime.
