2021 Industrial Factory Boiler Electric Aluminum Reverberatory Melting Furnace Hydraulic Tilting Furnace

1.0 Sets
MOQ
2021 Industrial Factory Boiler Electric Aluminum Reverberatory Melting Furnace Hydraulic Tilting Furnace
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Type: CE Melting Furnace
Usage: Melting Furnace
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2021
Warranty Of Core Components: 1 Year
Core Components: PLC, Bearing, Gearbox, Motor, Gear
Voltage: 220V ( Or Customized)
Dimension(L*W*H): Customized
Weight (T): 10 T
Power (kW): 8
Warranty: 1 Year
Key Selling Points: Long Service Life
Applicable Industries: Manufacturing Plant
Showroom Location: Egypt, Germany, Philippines, Mexico, Russia, Kenya, Argentina, Chile
Type: Metal Scrap Smelter
Energy: Natural Gas, LPG, Oil, Electric Resitance
Capacity: Customized
Refractory Material: Castable Material
Casting Material Life: 5 Years
Temperature Control Accuracy: ±10 ℃
Max Temperature: 1250℃
Crucible: Vesuvius Or Baidun
Furnace Lining: Castable Material
Weight: Depends On The Furnace
After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: Egypt, Germany, Philippines, Mexico, Russia, Kenya, Chile
Certification: CE CERTIFICATE
Basic Infomation
Certification: CE CERTIFICATE
Payment & Shipping Terms
Packaging Details: Nude pack or plywood case package whch is suitable for sea transport
Supply Ability: 50 Set/Sets per Year
Product Description
Industrial Furnace Electric Aluminum Melting Furnace Reverberatory Hydraulic Tilting furnace
PRODUCTS DESCRIPTION

Product Application

We are a professional supplier of melting furnaces. We supply crucible type, reverberatory type, rotary type, continuous melting and holding type furnaces. Besides the furnaces, we also supply the dust collector, ingot conveyor, degassing machine, tansfer ladle, ladle baker and related accessories.
Specifications For Metal Scrap Smelter For Melting Aluminum Copper Lead Tin Znic
1
Application
Aluminum, copper, lead, tin, zinc melting
2
Fuel
Electric resistance, Oil, Gas
3
Max temperature
1250℃
4
Furnace lining
castable material, refractory finers bricks
5
Furnace type
hydraulic tilting, stationary, rotary type
6
Temperature controller
Taisee
7
Electric components
CHINT, DELIXI, Omron, etc...
Details Images

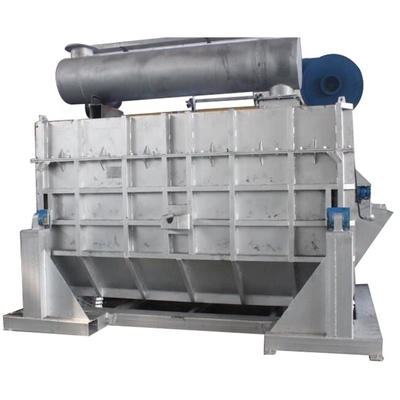

Reverberatory Type Furnace

The furnace shell is fabricated from steel plates and sectional steel, and is necessarily reinforced.
The melting chamber is lined with quality casting material and heat preservation material.
The roof and upper part of furnace walls are built with Grade-one high-alumina bricks. Heat insulation materials are silicate aluminum board and light bricks.

Crucible Type Furnace

Furnace shell is fabricated from steel plates and sectional steel while the furnace cover from cast iron material.
Refractory lining is built with once forming casting materia. The heat insulation layer is comprised of Grade One silicate aluminum fiber and light refractory bricks.
The emergency outlet: There is one emergency outlet at the furnace bottom in case the crucible broken.

Rotary Type Furnace

The furnace base is made of 20# I steel and 20# channel steel, which is used for supporting the whole furnace body.
The furnace shell is made of 8mm carbon steel drum.
The Furnace lining adopts the first-class high aluminum castable material for furnace hearth and ceramic fiber for insulation layer;
The Customer Site
WUXI WONDERY TRADING CO., LTD. is a professional supplier of industrial furnaces. Currently the company mainly supplies the industrial furnaces for heat treatment industry, motor industry, fastener industry, die casting industry, gravity casting industry, steel wire manufacturing industry, etc. Our main products are: aluminum melting furnace, copper melting furnace, zinc melting furnace, crucible melting furnace, rotary melting furnace, melting tower, reverberatory melting furnace, ladle preheater, lader baker, ingot molds,heat treatment furnace, pit type carburizing furnace, pit type nitriding furnace, box type resistance furnace, bogie hearth furnace, salt bath furnace, mesh belt furnace, etc. Established in year 2008, the company has gained rich experiences in development and design, quality control, and after-sales service. The company aims to serve every customer with quality products and excellent service. The company provides thoughtful services like technical consultation, installation and test-running, technical training, and maintenance. Our company is also able to design non-standard products as per customers' requests. We have exported our machines and equipment to the following countries and areas: Taiwan (CHINA), Vietnam, Thailand, Pakistan, India, Venezuela, Bolivia, Mexico, Argentina, Columbia, Australia, USA, Kenya, Ethiopia, Qatar, Egypt, etc. We are capable of providing thoughtful solutions for every individual customer based on their specific requirements, making sure that every potential customer is satisfied with our work.
CUSTOMER PRAISE
CERTIFICATION
PRODUCT PACKAGING
RELATED PRODUCTS
FAQ
1. What is the power supply of the industrial furnace?
The power supply of industrial furnace is to be decided by the customer's side. We are able to adjust the power supply (volt, and phase) through a transformer or of the customer's voltage directly so that the industrial furnace is ready for use at the end user's site.

2. What information should the customer provide to get an accurate quotation from us?
The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc.

3. What is the payment term?
The payment term is 40% down payment, and 60% before delivery (T/T mode).

4. What is the delivery time?
The delivery time of the machine is 15-30 days after receipt of down payment.
